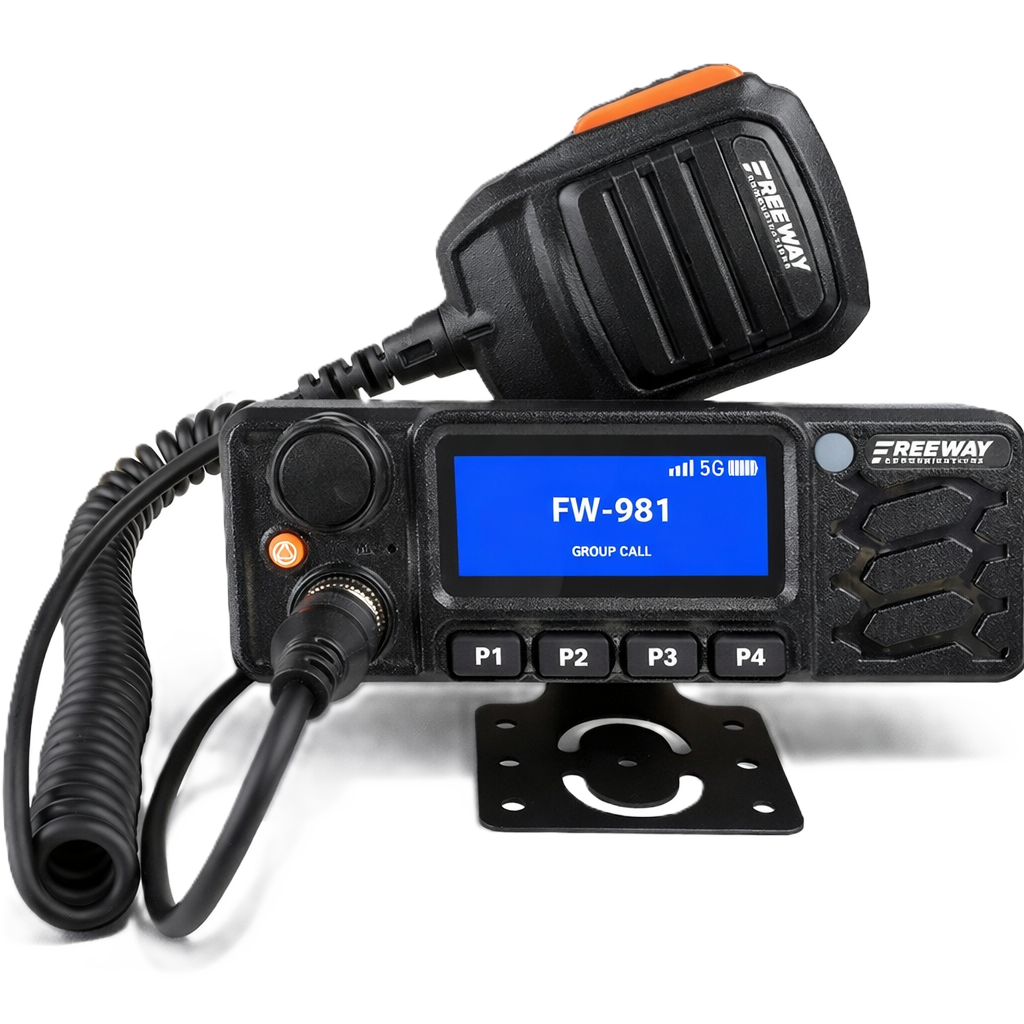

FW-981

Mobile radio

The FW-981 is our brand new ultra mini mobile radio. Perfect for any hard mount mobile applications.

160 x 64 px Display
Bluetooth Connectivity
Wifi Connectivity
Limited Keypad for Easy Menu and function Access
Stereo Speaker Audio Built in Mic for Handsfree Operation

download spec sheet

Reliable coverage

Designed for fleet communications in Canada & USA with LTE Cat M1 and NB IoT connectivity support

Every THing you need
in the box

1x FW-700 Handheld LTE Radio
1x Belt Clip
1x Charging cable and plug
1x Lanyard

OPtional extra

Remote Speaker Mic

Key Features

FW-700 is a feature packed full function LTE radio. Whatever your needs are the FW-700 will meet them for you.

Group Calling

One to many group / channel calling. For standard two-way radio communications

Private Calling

One to One private calling for individual call alert and communications

gps Tracking

Locate your radio
any time any where

Responsive Audio

Audio output power -
greater than 0.5w

Limited Keypad

Limited keypad for easy menu and feature access on the fly

Large Display

160x64 px
full colour display

FW-981

4G Network Radio Mobile Radio with PTT Button

Long‑Range 4G POC Radio   •   Group & Single Call   •   Wifi Enabled   •   GPS (Optional)

4G Network Coverage
Uses 4G networks to overcome traditional distance limits and enable wide‑area communication
Multiple Call Modes
Supports group call, single call, friendly call and emergency call for flexible dispatching
Ultra‑Compact Design
Slim, lightweight form factor for easy install in any Vehicle
GPS & Side Keys
Optional GPS and programmable side‑key assignment to fit different workflows
Field Operations
Security & Patrol
Logistics & Fleet
Event Management

The FW-981 4G network radio. Slim, lightweight form factor for easy install in any Vehicle solves the traditional short‑range limitation of conventional two‑way radios by leveraging 4G cellular networks. It is suitable for deployment on a wide range of network operators, delivering more flexibility and convenience for teams that need reliable long‑distance communication.

With support for group call, single call, friendly call and emergency call, plus an ultra‑thin design, RTOS operating system, programmable side keys and optional GPS, the FW-981 is well‑suited to modern professional communication scenarios across industries.

Specifications

Key Features

Network support 4G network radio (suitable for all kinds of networks, depending on operator support)
Call types Group call, single call, friendly call, emergency call
PTT / side keys Dedicated PTT button, side key assignment (programmable side keys)
Operating system RTOS (Real‑Time Operating System)
GPS GPS positioning (optional, depending on configuration)
Design Slim, lightweight form factor mobile 4G POC (push‑to‑talk over cellular) radio

General

Dimensions (H × W × D) 146 mm × 52 mm × 55 mm
Weight (including battery) ≈ 193 g
Working temperature -30 °C ~ +75 °C
Operating voltage DC 12V or 5V
Working current (peak) ≈ 0.6 A
Average current ≈ 540 mA @ UMTS2100; ≈ 239 mA @ GSM900
Stand-by current ≈ 5 mA @ UMTS; ≈ 5 mA @ GSM
Charger mode USB Type‑C or 12v Bare Wire
Baseband / SIM (U)SIM / SIMU; dual SIM card, standard SIM card slots supporting 3 V SIM and 1.8 V SIM
UART connector 8‑pin UART
Maximum power consumption ≈ 2.2 μW

Frequency & RF

LTE frequency bands (North / South America) FDD: B2 / B4 / B5 / B12 / B13 / B14 / B66 / B71
TX power LTE: +22 dBm (3GPP TS 36.101 R9 Class 3)
RX sensitivity LTE: +22 dBm (3GPP TS 36.101 R9 Class 3)

All information is based on the provided product description and may be subject to change by the manufacturer without prior notice. Actual network compatibility and features such as GPS and call services depend on the selected configuration and local mobile operators.
