SYSLINK

Radio Bridging has never been easier

Interconnect your sites
Cross Band your Radios
Iintroducing SYSLYNK by Freeway Communications

download spec sheet

Reliable coverage

Designed for communications needs in Canada & USA with LTE Cat M1 and NB IoT connectivity support

High Power / Full Spectrum

Built in 10W UHF or VHF radio for maximum coverage
High quality audio, Minimum Noise

What is SYSLINK?

SYSLINK provides wide area communication using LTE networks and instantaneous communication. SYSLINK repeater function can be used to extend the range of VHF and UHF Type 2 DMR or Analog simplex or repeater systems and cross band them between one or multiple sites

Do your Transport fleet use VHF radios and your site / factory radios operate on UHF? have you ever wished you could have them talk to each other? with the ​SYSLINK suite of products now you can.

Does one of your sites use VHF radios whilst the others use UHF? Ever wanted to connect the two together?  with the ​SYSLINK suite of products now you can.

Do your managers hate carrying a radio and wish that they could communicate with facility staff from where ever they are? with the ​SYSLINK suite of products now you can. Do your office staff hate having a radio on their desk and would rather speak with staff via their phone or computer? with the ​SYSLINK suite of products now you can.

network bridges

SYSLINK 1V

VHF / POC INTERCONNECT

SYSLINK 1U

UHF / POC INTERCONNECT

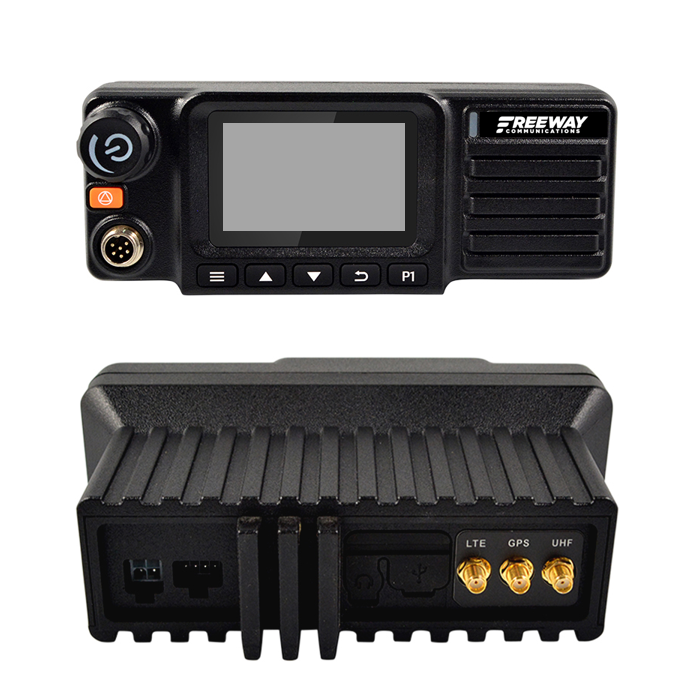

SYSLINK

Conventional Two-Way radio to POC network bridge

Long‑Range LTE POC Radio   •   VHF or UHF 10W conventional Radio

Field Operations
Security & Patrol
Logistics & Fleet
Event Management

The SYSLINK network bridge offers users the ability to intergrate traditional two-way radios with LTE network radios solving the traditional short‑range limitation of conventional two‑way radios by leveraging LTE cellular networks. It is suitable for deployment on a wide range of network operators, delivering more flexibility and convenience for teams that need reliable long‑distance communication.

Conect multiple divisions, factories, hotels, hospitals traditional two-way radio systems together to create a comprehensive communications network.

Specifications

Key Features

Network support LTE to Conventional VHF / UHF radio
Call types Group call, emergency call
Operating system RTOS (Real‑Time Operating System)

General

Dimensions (H × W × D) 72 mm × 135 mm × 199 mm
Weight ≈ 918 g (without antennas)
Working temperature -30 °C ~ +75 °C
Operating voltage DC 12V
Working current (peak) ≈ 7.0 A
Stand-by current ≈ 5 mA @ UMTS; ≈ 5 mA @ GSM
Charger mode AC (120v) / DC (12v) Isolated Block Power Supply

Frequency & RF

LTE frequency bands FDD: B1 / B2 / B3 / B5 / B7 / B8 / B40
VHF frequency band (Analog) VHF: 136-174MHz
UHF frequency band (DMR and Analog) UHF: 400-470MHz
TX power (LTE) LTE: +22 dBm (3GPP TS 36.101 R9 Class 3)
TX power (VHF) VHF (Analog): 10W
TX power (UHF) UHF (DMR or Analog): 10W
RX sensitivity LTE: +22 dBm (3GPP TS 36.101 R9 Class 3)

All information is based on the provided product description and may be subject to change by the manufacturer without prior notice. Actual network compatibility and features such as GPS and call services depend on the selected configuration and local mobile operators.
